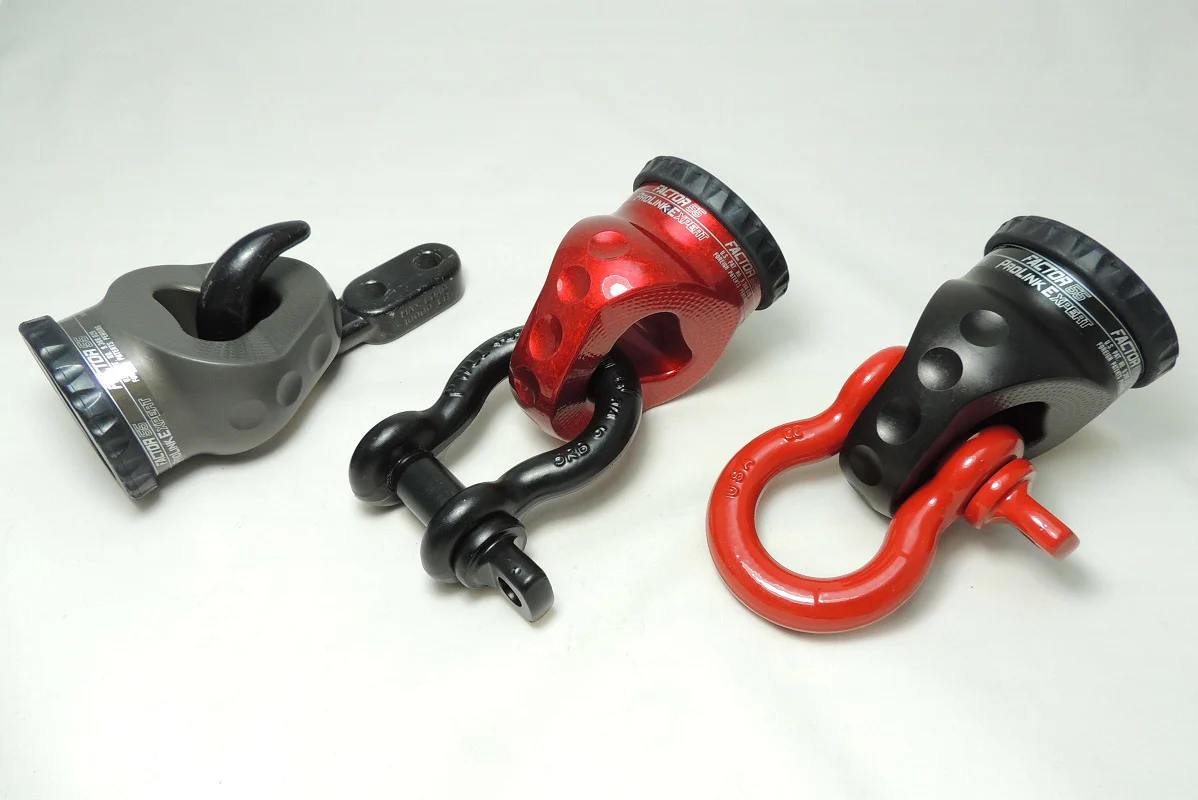

Factor 55 ProLink E Expert Shackle Mount Assembly - Red
ProLink Expert. Replace conventional winch hooks with a safer more secure shackle/D-ring. Lightweight, Precision CNC machined 6000 series aluminum. No splicing required, titanium double shear pin design.
Designed for both steel cables and synthetic winch ropes. Integrated EPDM rubber boot for fairlead protection. Connects to either the pin or bow end of common 3/4 inch screw pin shackles. Connects to the pin ends of 7/8 inch and 1 inch screw pin shackles. Fits over most OEM tow hooks.
Warning: Keep forces in line. Do not side load shackle
Features:
- Color: Red
- For rope and cable diameters up to 3/8 inch
- Fits common 3/4 inch screw pin shackles/D-rings
- Mil-Spec anodized or powder coated
- 5/8 inch diameter 6AI-4V titanium double shear pin
- Max Load: 16,000 pounds
- Ultimate Strength: 40,000 pounds
- Weight: 30oz
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Factor 55 ProLink E Expert Shackle Mount Assembly - Red
Factor 55 ProLink E Expert Shackle Mount Assembly - Red
ProLink Expert. Replace conventional winch hooks with a safer more secure shackle/D-ring. Lightweight, Precision CNC machined 6000 series aluminum. No splicing required, titanium double shear pin design.
Designed for both steel cables and synthetic winch ropes. Integrated EPDM rubber boot for fairlead protection. Connects to either the pin or bow end of common 3/4 inch screw pin shackles. Connects to the pin ends of 7/8 inch and 1 inch screw pin shackles. Fits over most OEM tow hooks.
Warning: Keep forces in line. Do not side load shackle
Features:
- Color: Red
- For rope and cable diameters up to 3/8 inch
- Fits common 3/4 inch screw pin shackles/D-rings
- Mil-Spec anodized or powder coated
- 5/8 inch diameter 6AI-4V titanium double shear pin
- Max Load: 16,000 pounds
- Ultimate Strength: 40,000 pounds
- Weight: 30oz
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ProLink Expert. Replace conventional winch hooks with a safer more secure shackle/D-ring. Lightweight, Precision CNC machined 6000 series aluminum. No splicing required, titanium double shear pin design.
Designed for both steel cables and synthetic winch ropes. Integrated EPDM rubber boot for fairlead protection. Connects to either the pin or bow end of common 3/4 inch screw pin shackles. Connects to the pin ends of 7/8 inch and 1 inch screw pin shackles. Fits over most OEM tow hooks.
Warning: Keep forces in line. Do not side load shackle
Features:
- Color: Red
- For rope and cable diameters up to 3/8 inch
- Fits common 3/4 inch screw pin shackles/D-rings
- Mil-Spec anodized or powder coated
- 5/8 inch diameter 6AI-4V titanium double shear pin
- Max Load: 16,000 pounds
- Ultimate Strength: 40,000 pounds
- Weight: 30oz
