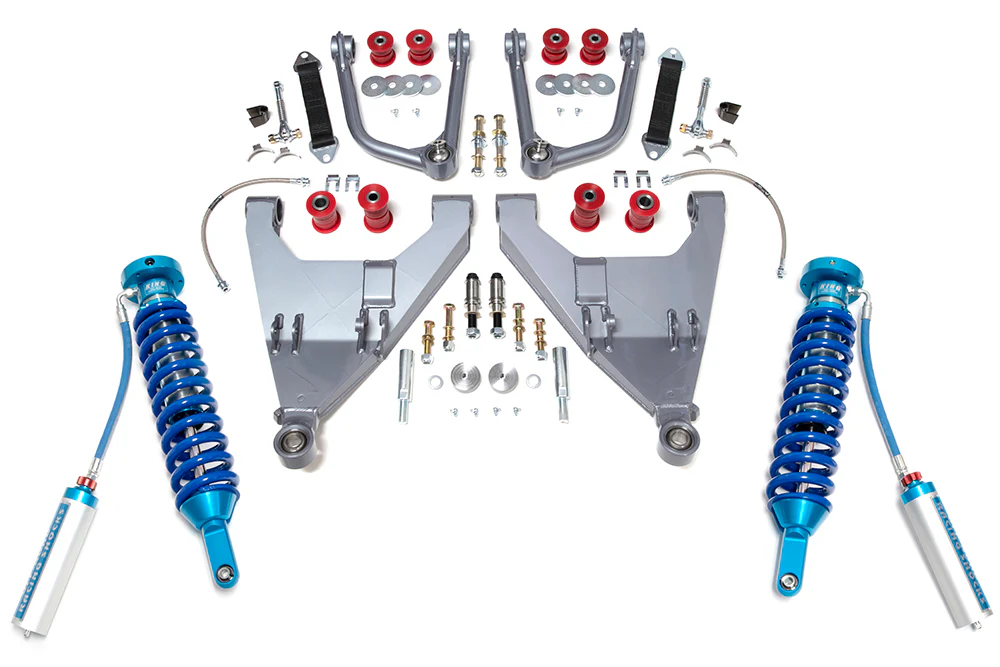

Bolt-on +3.5" long travel kit for the 3rd Gen Toyota Tacoma. Extended 4130 chromoly upper and lower control arms widen front track 3.5" per side and bolt to the factory mounting locations for 12.5" of front wheel travel with 4WD. Ships with King 2.5" long travel coilovers.

The Race Series gives 2.5" more ground clearance than the Standard Series +3.5 kit and saves about 5 lbs per lower arm. Lower arms are internally gusseted and fully boxed with billet CNC uniball cups integrated into the arm for added strength while retaining factory turning radius. Integrated steering stop tabs preserve factory turning angle, and dual shock tabs allow an optional TC bypass shock for more damping control.

Specs & Features

• Includes King 2.5" front long travel coilovers with remote reservoirs, compression adjusters, and 600 lb springs (pair, PN TC5119-03A)
• Extended upper and lower control arms widen track 3.5" per side (kit PN 86000-R-16)
• 12.5" of front wheel travel with 4WD
• 4130 chromoly construction; upper and lower ball joints upgraded to 1" uniballs
• 1" I.D. uniballs with heat-treated stainless steel ball and race, military-grade PTFE woven liner
• Internally gusseted, fully boxed lower arms with dual shock tabs and integrated steering stop tabs
• Urethane pivot bushings with greaseable zerk fittings
• 17-4 stainless steel hi-misalignment spacers, DOT-approved stainless steel braided brake lines, Grade 8 hardware
• Adjustable limit strap clevises included to tune droop travel
• 3-stage powder coat with clear coat finish, hand crafted in the USA

Notes

• TC custom 4WD extended axles required to retain 4WD (machined from 4340, reuse factory CV joints, sold separately)
• Fiberglass fenders required
• Uses TC-specific 2.5" long travel coilovers that bolt to the factory coil bucket; extended-travel shocks are too short and will not work
