Bolt-on +3.25 Gen-II Caddy long travel kit for the 1988-2004 4WD Hilux. Chromoly upper control arms and fully boxed lower control arms widen front track 3.25" per side for 12" of front wheel travel. Eliminates the factory torsion bars and converts the front to 2.5" coilover shocks. Ships complete with King 2.5" coilovers and the matching weld-on shock hoop kit.

Upper and lower ball joints are upgraded to 1" TC stainless uniballs. Dual shock tabs on the lower arms support an optional TC external bypass shock for added damping control, and urethane pivot bushings tighten steering response over stock rubber.

Specs & Features

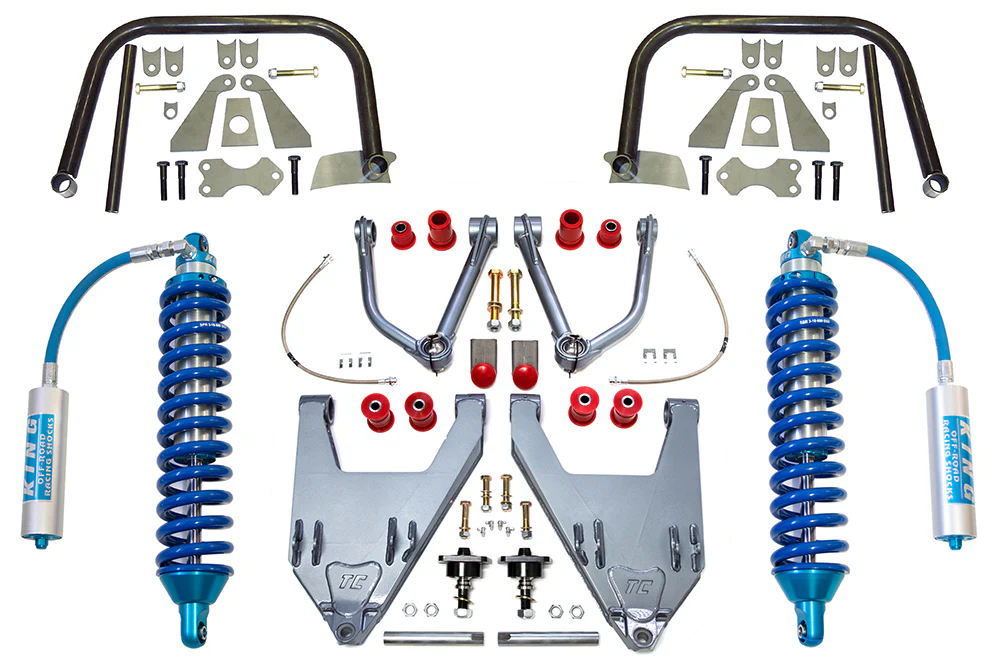

• (1) Gen-II Caddy Kit long travel kit, boxed lowers
• (1) pair King 2.5" front long travel coilovers with remote reservoirs (PN TC522-01)
• (1) Gen-II Caddy Kit weld-on shock hoop kit (PN 95602)
• Chromoly upper and fully boxed lower control arms widen front track 3.25" per side
• Up to 12" of front wheel travel with 4WD
• Converts factory torsion bars to 2.5" coilover shocks
• 1" I.D. uniballs with heat-treated stainless steel ball and race, military-grade PTFE woven liner
• Dual shock tabs on lower arms for an optional TC external bypass shock
• Pre-bent 4130 chromoly shock hoops support 8" 2.5 coilovers
• DOT-approved stainless steel braided brake lines, urethane bushings, Grade 8 hardware
• 3-stage powder coat with clear coat finish

Notes

• T100 4WD axles required to retain 4WD, sold separately
• Fiberglass fenders required
• Welding required for the shock hoop kit installation
